Dove
pigeon R | pigeon T
About Pigeon R | Pigeon T

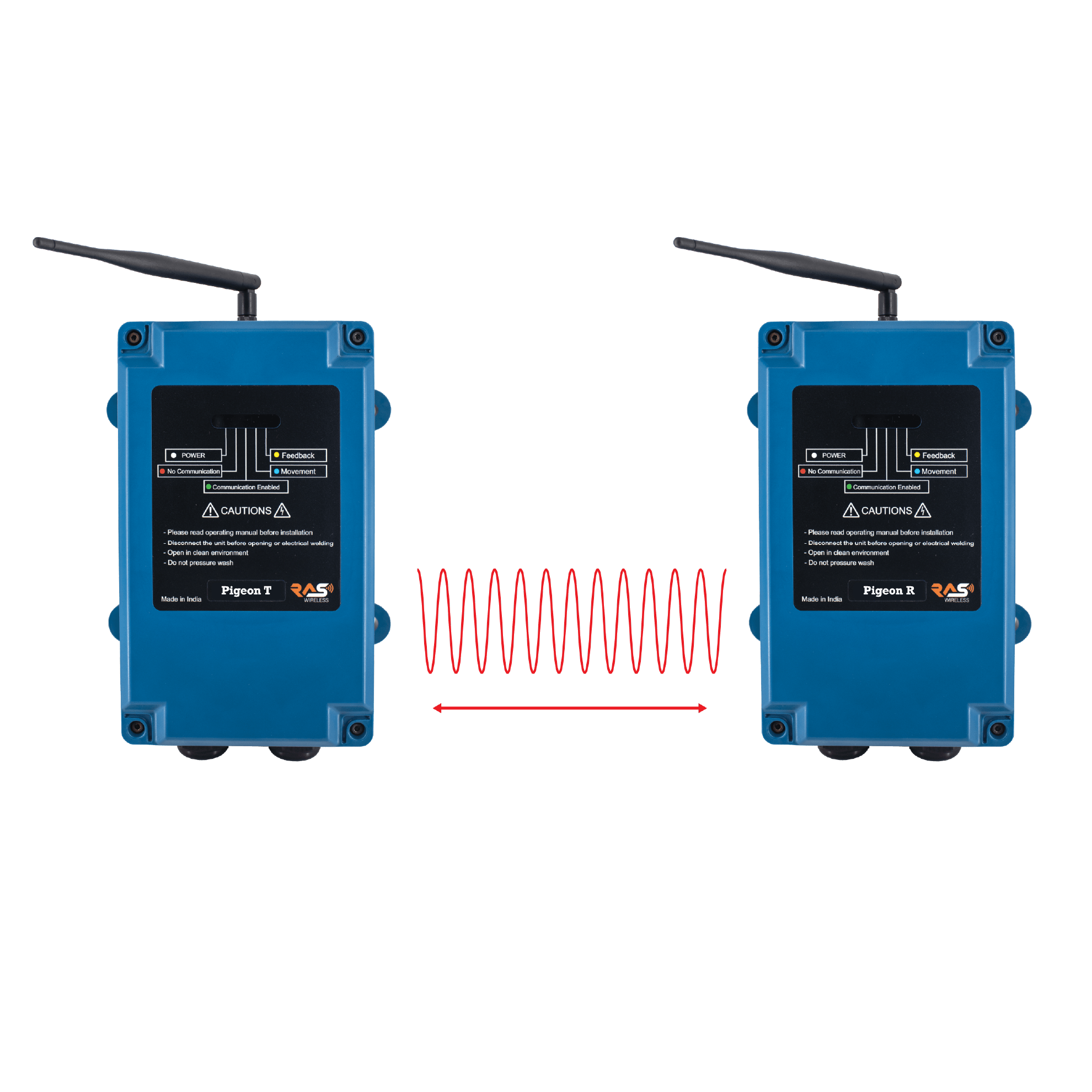

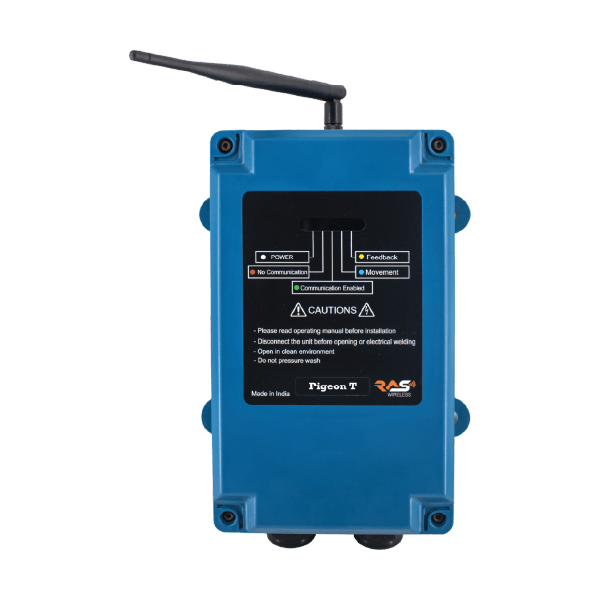

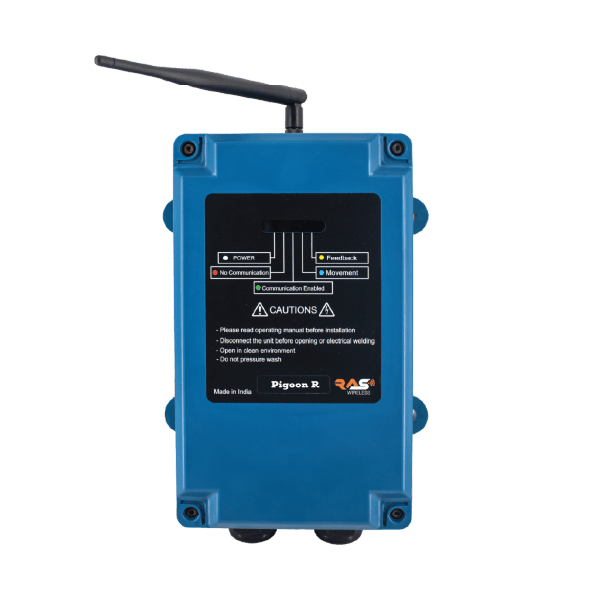

Pigeon R/T is a high-performance, industrial-grade wireless data communication system engineered for seamless, long-range control in demanding automation and material handling environments. Consisting of a robust Transmitter (Pigeon T) and a highly responsive Receiver (Pigeon R), this system is built to bridge the gap between heavy machinery and safe operator control with absolute precision.
- Up to 12 digital inputs/outputs.
- Reliable wireless communication with up to 100m operating range.
- Built-in emergency stop circuit for enhanced safety.
- IP65 rated enclosure protection.
- Robust and thoughtful design.
- LED indicators for power & communication status.
- Comes with cable gland by default and connector option available.
Catalogue For pigeon R | pigeon T
| Sr.No |
Elements
|
Volume
|
|---|---|---|
1 |
Transmitter Model |
Dove |
2 |
Transmitter Supply Voltage |
3.6 V |
3 |
Operating Element |
10 two-step push buttons + Rotary switch (Optional) |
4 |
Emergency Stop Switch |
Yes |
5 |
Frequency Ranges |
433.000 - 434.775 MHz |
6 |
Activation Type |
Button Combination. |
7 |
Antenna |
Internal |
8 |
Battery Type |
Rechargeable Li battery BLP3055_ |
9 |
Battery Voltage/Capacity |
3.6V / 3000mAh |
10 |
Continuous Runtime |
Approx. 26 hrs. |
11 |
Operating Temperature Range |
-15 C° to 70 C°, |
12 |
Material of Enclosure |
ABS Plastic |
13 |
Weight |
370 gm |
14 |
Dimensions |
W64mm x D56mm x H224mm |
15 |
Protection |
IP65 |
16 |
Charger Type |
CLP3055_ (AC charger) Suitable for Battery BLP3055_ |
17 |
Battery charging time |
Approx. 4 hrs. |
18 |
Feedback |
LCD Display, Vibration alarm |
19 |
LED Feedback |
Operating / Battery Status |
20 |
Frequency Management |
Manual Frequency Switching |
21 |
APO(Automatic Power-off) |
Approx. 5 min after last Input command. |
