Dove
Dove
About Dove

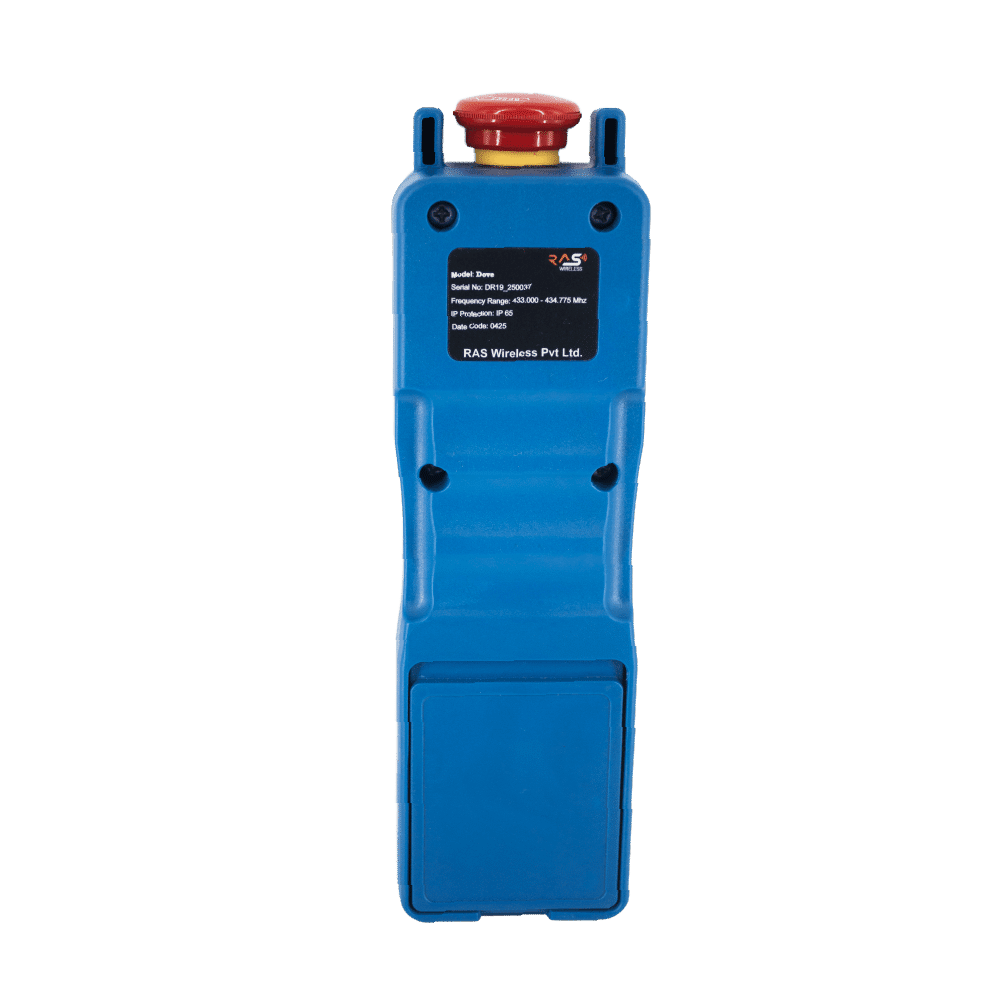

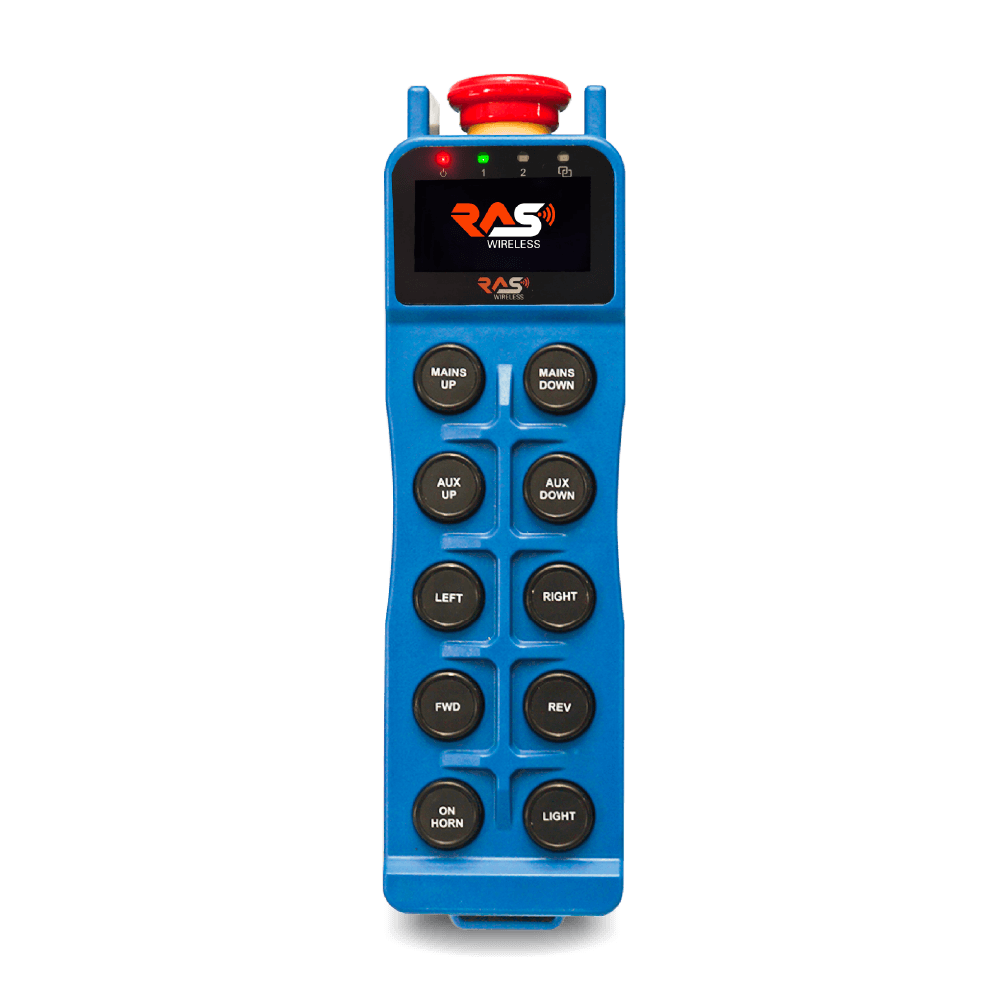

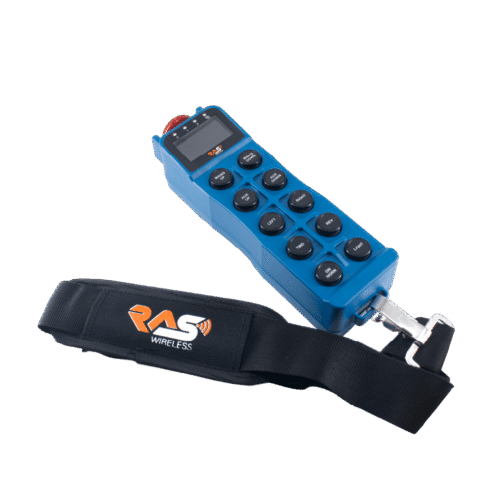

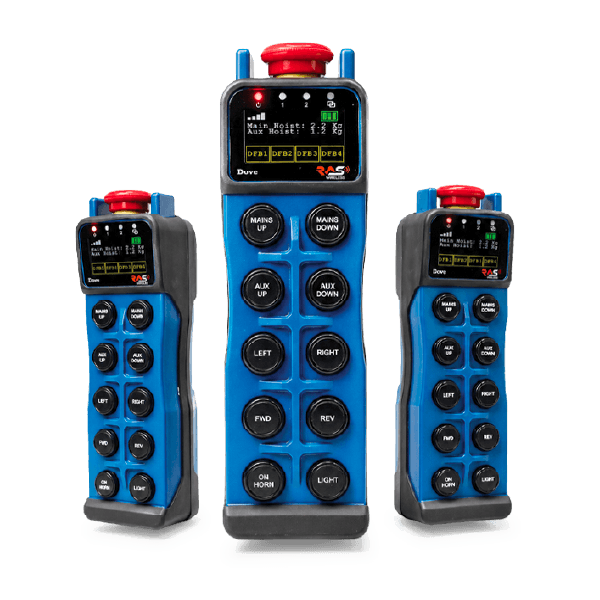

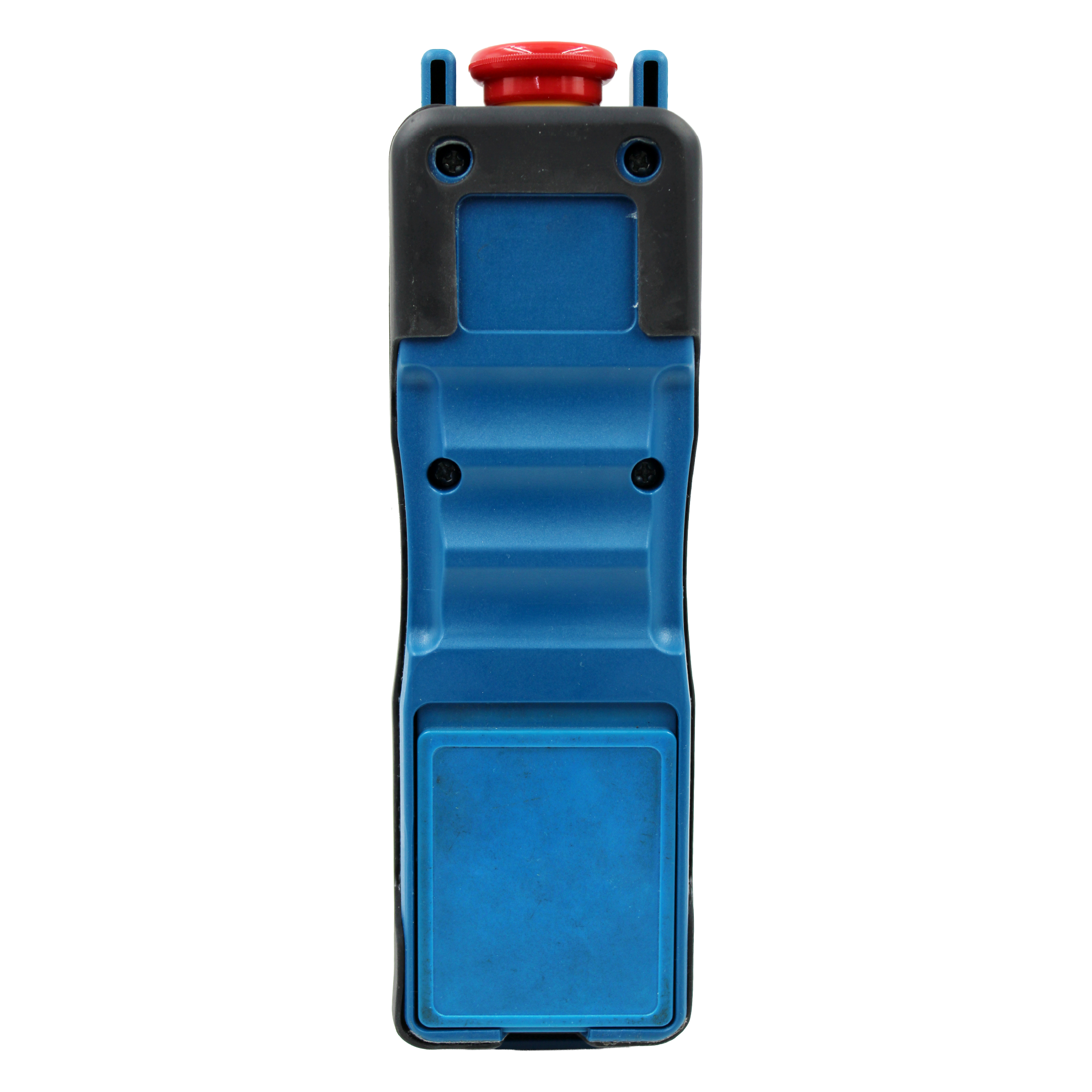

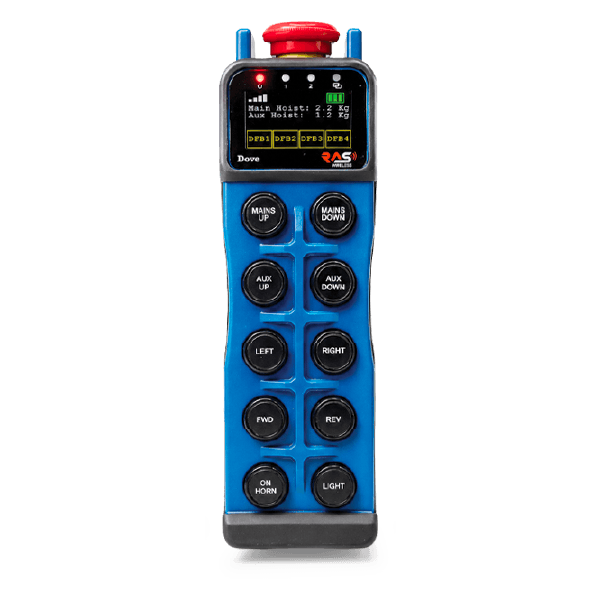

Dove is a compact and intuitive wireless remote control system designed for industrial applications where safety, precision, and ease of use are essential. Dove blends reliability, safety, and performance in one handheld device—ideal for demanding crane, hoist, and machine control environments.
- Up to 8+2 Push Buttons with two-speed functionality and 1 Rotary Selector switch
- Configurable 1.8’ Color Display for data display.
- LEDs to indicate operational feedback and battery status.
- The product is equipped with IP65-rated protection.
- Up to 100 m operating range.
- Up to 1 Selector switch with three select options
- Equipped with Rechargeable Li-Po Battery with up to 30 hrs. Operating time.
- Comfortable ergonomics for best handling experience
- Vibration alert for early detection of low battery levels and configurable system errors.
- E-stop switch
- Up to 20 digital control functions.
Catalogue For Dove
| Sr.No |
Elements |
Volume |
|---|---|---|
1 |
Transmitter Model |
Dove |
2 |
Transmitter Supply Voltage |
3.6 V |
3 |
Operating Element |
10 two-step push buttons + Rotary switch (Optional) |
4 |
Emergency Stop Switch |
Yes |
5 |
Frequency Ranges |
433.000 - 434.775 MHz |
6 |
Activation Type |
Button Combination. |
7 |
Antenna |
Internal |
8 |
Battery Type |
Rechargeable Li battery BLP3055_ |
9 |
Battery Voltage/Capacity |
3.6V / 3000mAh |
10 |
Continuous Runtime |
Approx. 26 hrs. |
11 |
Operating Temperature Range |
-15 C° to 70 C°, |
12 |
Material of Enclosure |
ABS Plastic |
13 |
Weight |
370 gm |
14 |
Dimensions |
W64mm x D56mm x H224mm |
15 |
Protection |
IP65 |
16 |
Charger Type |
CLP3055_ (AC charger) Suitable for Battery BLP3055_ |
17 |
Battery charging time |
Approx. 4 hrs. |
18 |
Feedback |
LCD Display, Vibration alarm |
19 |
LED Feedback |
Operating / Battery Status |
20 |
Frequency Management |
Manual Frequency Switching |
21 |
APO(Automatic Power-off) |
Approx. 5 min after last Input command. |
