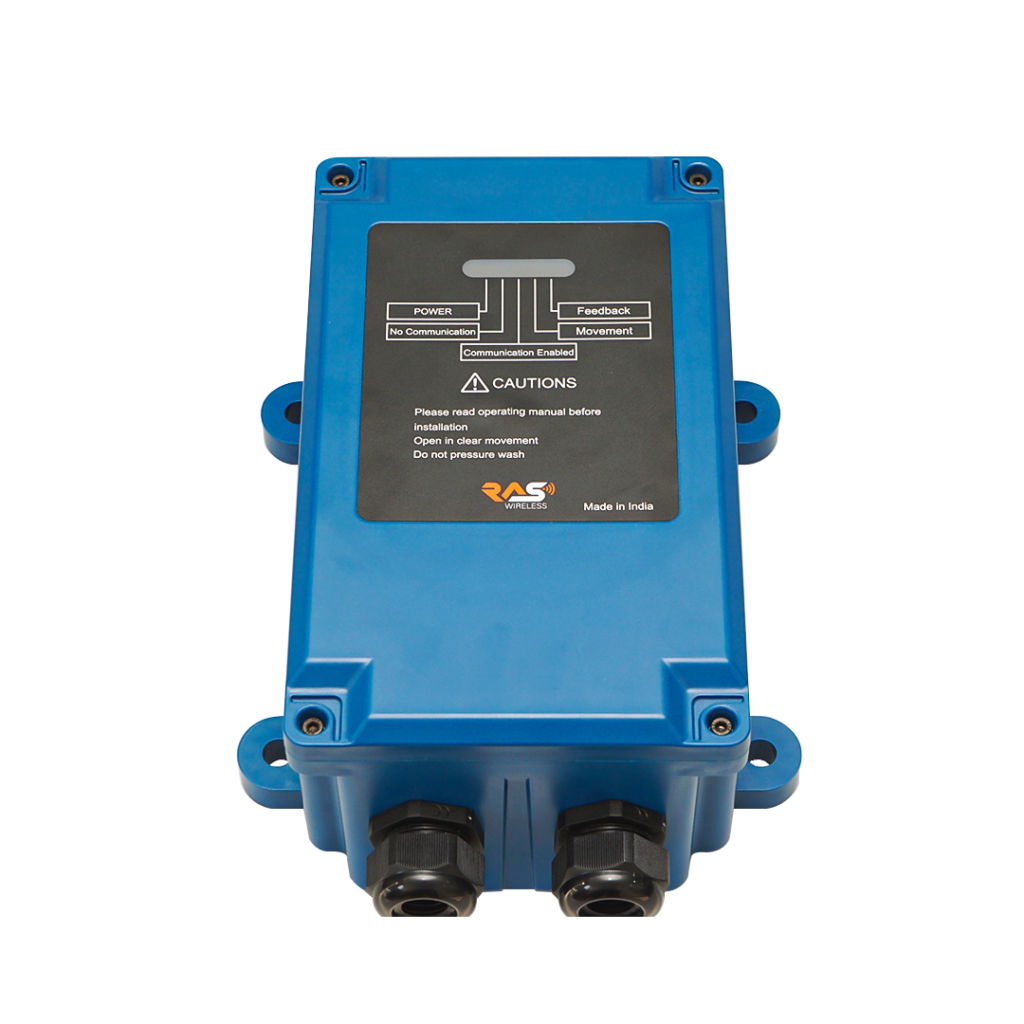

Technical Data Sheet - Receiver
Technical Data Sheet Receiver
| Sr.No |
Elements |
Volume |
|---|---|---|
1 |
Supply Voltage |
85 – 240 V AC, 50 Hz |
2 |
Power Consumption |
Output Power Consumption- 30W |
3 |
Number of Relays |
21 including 2 E-Stop |
4 |
Indicator |
|
5 |
Weight |
NA |
6 |
Antenna |
External |
7 |
Dimensions |
148 x 100 x 249 mm (5.8 x 3.9 x 9.8 in) |
8 |
Frequency range |
2.4 GHz, 868 MHz |
9 |
Mounting |
Mounting with Rubber Isolators |
10 |
Enclosure |
ABS Plastic |
11 |
Input |
2 x Analog (4-20 mA), 4 digital Inputs (12/24V DC) |
12 |
Safety Function |
E-stop (Fail Safe) |
13 |
Connection |
Cable gland M32 x 2 (mating connector optional) |
14 |
Operating temperature Range |
-20 to 70 C |
15 |
Protection class |
Ip65 |
